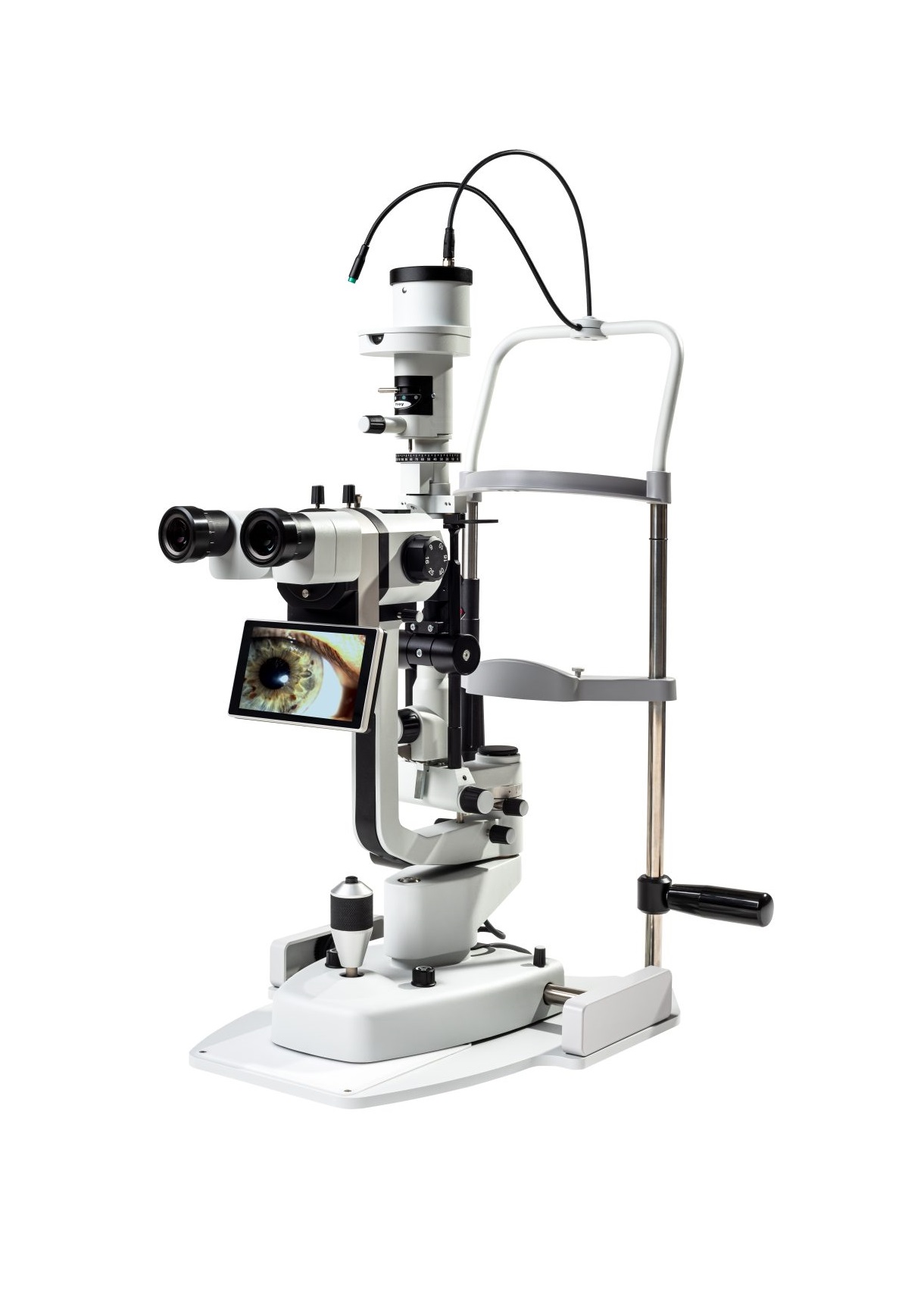

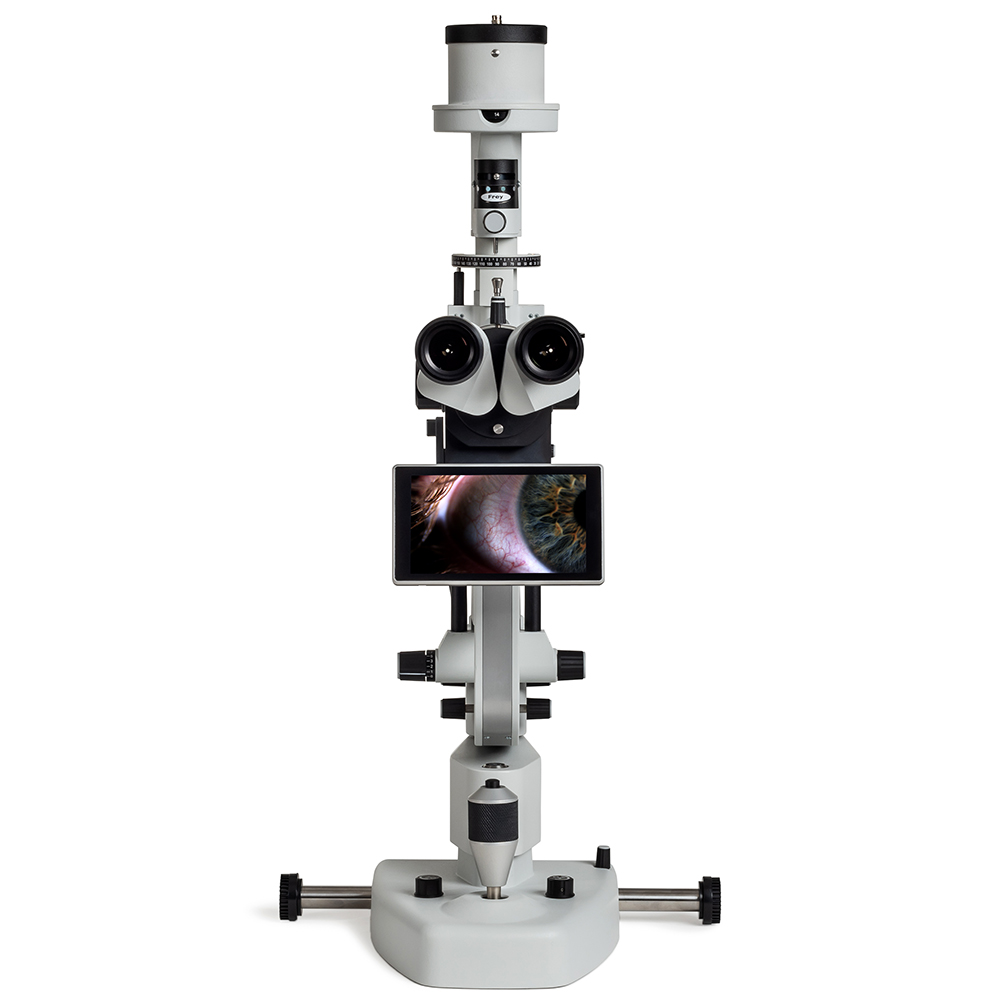

Frey SL-100 LED

The new LED slit lamp by FREY S.J. is designed for very high performance and reliability. High-quality optics assures excellent image quality and resolution. The lamp addresses the need for new technologies by integrating eye illumination and digital camera control electronics and features an innovative LED illumination system.

Please fill out the form below for pricing information.

    Category: Manufacturer:

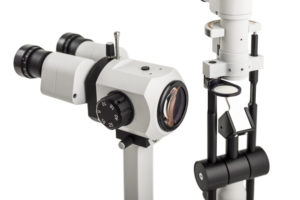

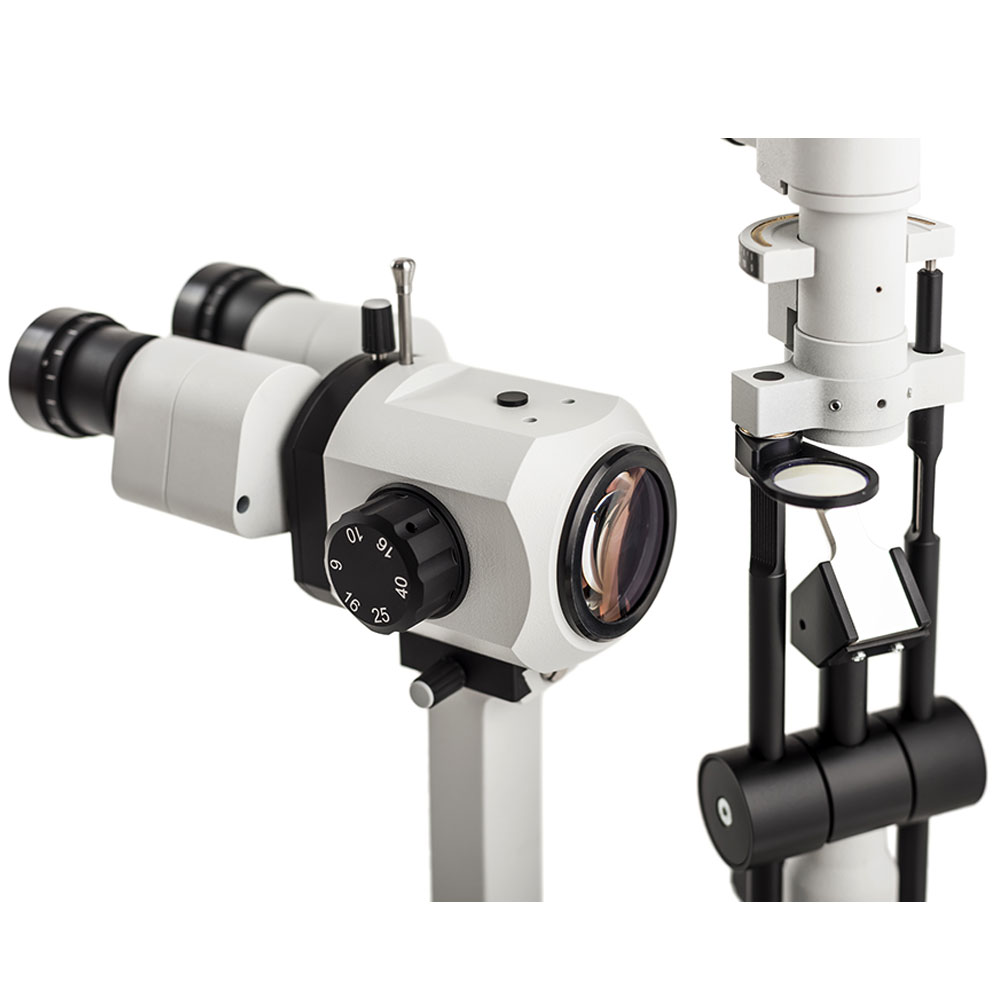

    SL-100 comes with all elements important for a demanding user. The yellow filter is integrated into the optical body of the microscope, you can easily drop it in whenever you are looking for subtle corneal staining. The diffuser mounted to column hardware can be easily inserted into the slit illumination path for an improved general overview of the eye.

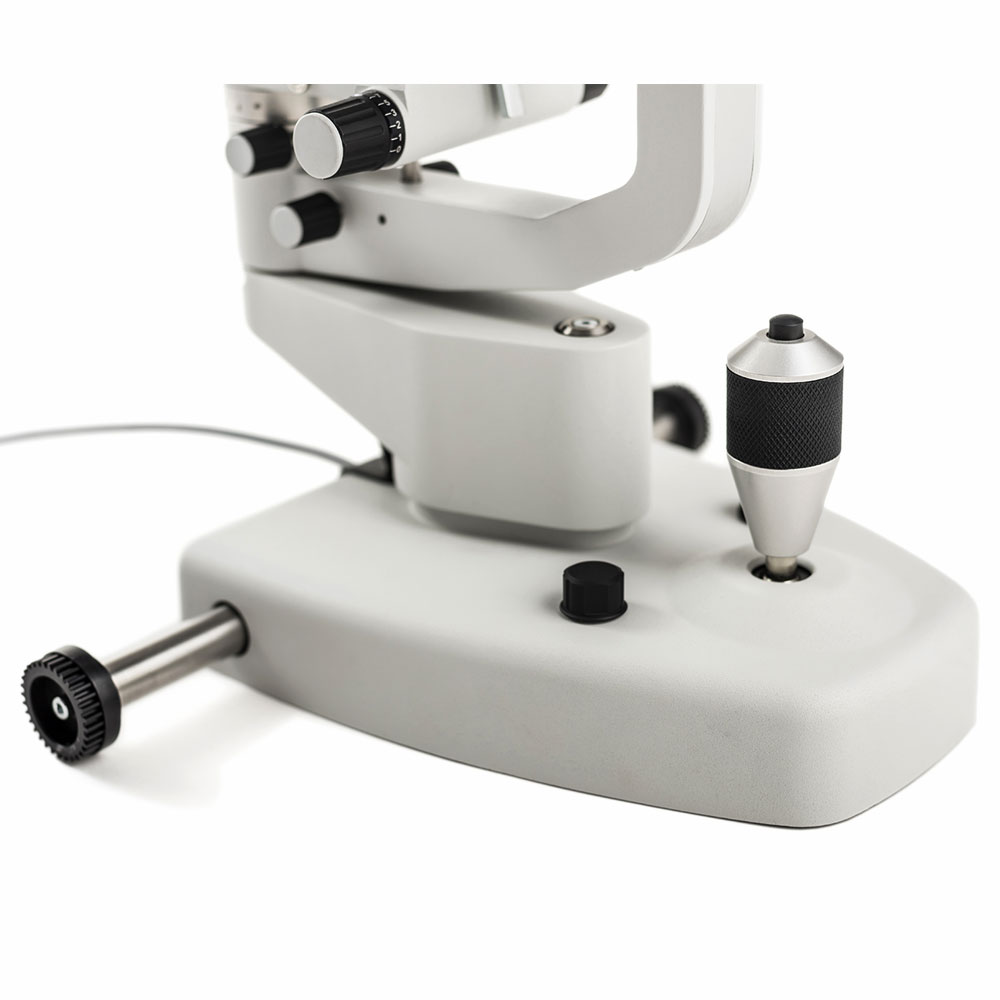

    Lamp integrates all components and cabling required for connecting and controlling digital camera system. Push-button embedded into joystick and the eye illumination system control electronics integrated within the device hardware assures no need for future upgrades in order to add a camera system. All connectors and cables for the camera connection are in an elegant way hidden inside to improve the comfort of using the device.

    The LED illumination source eliminated heat and infrared emission associated with traditional light sources. Emitted color temperature is independent of its intensity to guarantee a bright and clear picture. The lifecycle of LED is longer than 50 000 working hours, this eliminates maintenance associated with light source replacement. The electronic circuit controlling LED light intensity is very precise for best slit light performance and control.

    Technical Specifications

    • Slit length: 0 – 14 mm
    • Continuously adjustable slit length: 1.8 – 14 mm continuously variable
    • Filters: clear, blue, natural density, yellow, diffuser, red-free
    • Slit rotation: 0° – 180° with a reference scale
    • Microscope type: Convergent
    • Eyepiece: 12.5 x
    • Magnifying powers: 6x/ 10x/ 16x/ 25x/ 40x
