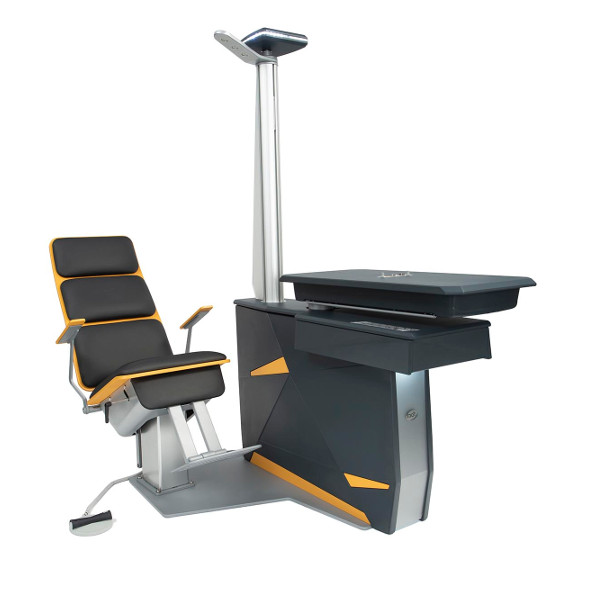

With its technical (table-top with the electrical up/down adjustment) and design improvements, ECO PLUS represents the new generation of well-known ECO UNIT.
Description:
- Elegance, comfort performance
- Two instruments sliding table-top with optional electric height adjustment
- Electrically elevated COMFORT chair with optional reclining 85° (+/-3 ), revolving system allowing to examine the patient with additional diagnostic devices from the side
- Convenient control panel and easy accessible accessory drawer
- Aluminum post with illumination lamp, ophthalmoscope / retinoscope rack and projector support
- Simple connection of different types of slit lamps: 6V,12V,19V DC
- Optional: Left handed set up, counter balanced or linear phoropter arm, specially designed stand for autophoropter controller
- Robust steel base, powder coated (RAL 9006)
- Wide selection of upholstery and main body-colours available without surcharges
Options:
- PREMIUM patient chair – with arm-rests and feet-support.
- Chair reclining and 90° revolving system
- Electrically elevated table top
- Phoroptor arm PA-1000 (with gas spring)
- Phoropter arm PA-3000 (linear type)
- Upholstery color change
- Ophthalmoscope/retinoscope holder
- Data transfer cables build in table top (USB 2.0, RS-232)

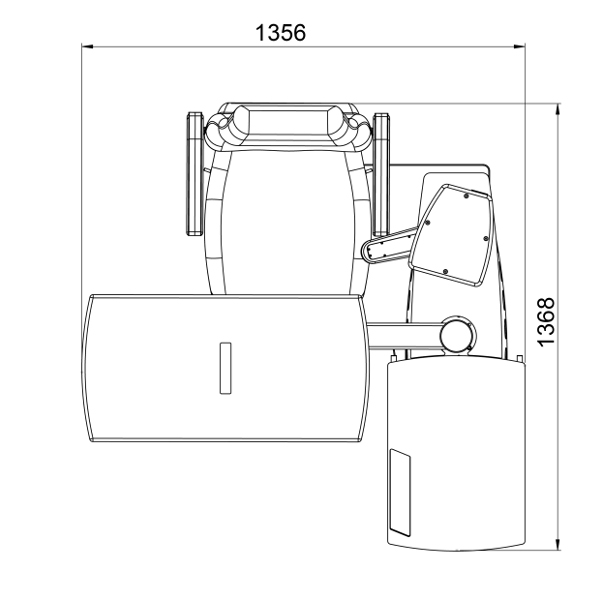

Dimensions:
- Width: 1150mm – 1350mm
- Depth: 1520mm
- Height: 1810mm
- Column chair up/down movement: 200mm
- Min/max seat height: 500mm – 700mm
- Table height: 875mm – 980mm
- Table-top dimensions: 450mm x 880mm
- Maximum chair load capacity: 150 kg
