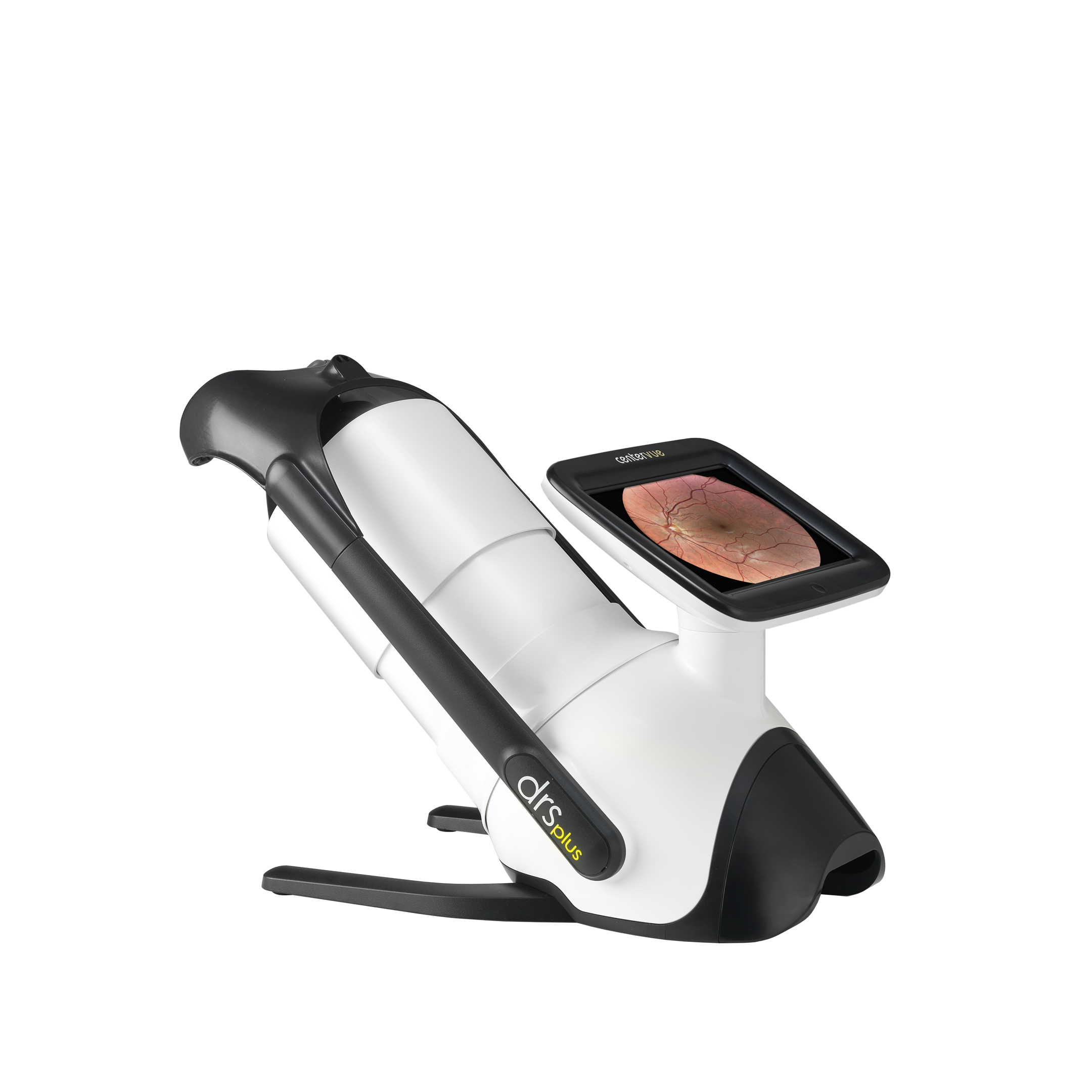

iCare DRSplus

DRSplus confocal fundus imaging system by CENTERVUE uses white LED illumination to produce TrueColor and detail-rich images, setting a new effective and efficient standard of Retinal Imaging.

Please fill out the form below for pricing information.






    Category: Manufacturer:

    Confocal imaging is well known in ophthalmology as standard of high image quality. The main characteristic of confocality is to reduce or suppress any scattered or reflected light outside the focal plane.
    Thanks to this feature, DRSplus guarantees increased image sharpness, better optical resolution and greater contrast when compared to traditional fundus camera imaging.
    More over, the system uses a white light LED source, which includes the entire visible spectrum, to illuminate the retina and to capture TrueColor fundus images characterized by colours close to reality.

    TrueColor Confocal Technology, with white LED, promotes detailed 45° retinal images and allows to scan through cataract.
    The confocal technology permits imaging through pupils as small as 2.5 mm, without need of dilation, ensuring a comfortable patient experience.
    Fast Fully Automated operation requires minimal staff training to acquire the highest quality images, speeding up the examination time.

    CENTERVUE DRSplus provides different imaging modalities.
    TrueColor, Red-free, Blue and Red channels, External Eye, Stereo view of the ONH and Mosaic.

    The Mosaic function allows a panoramic view of the retina, up to 80°.
    By using a special stitching algorithm, DRSplus automatically combines different fields without user intervention.
